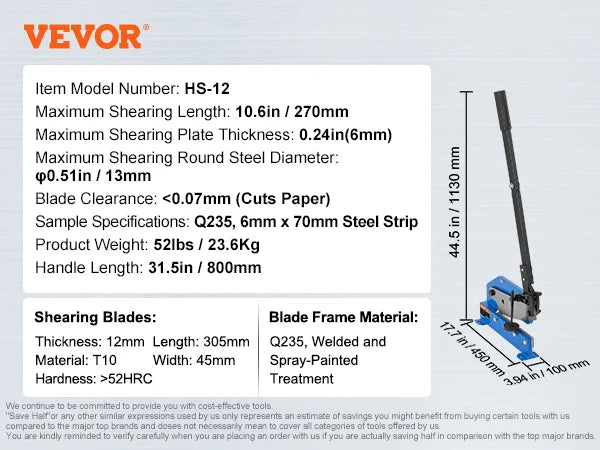

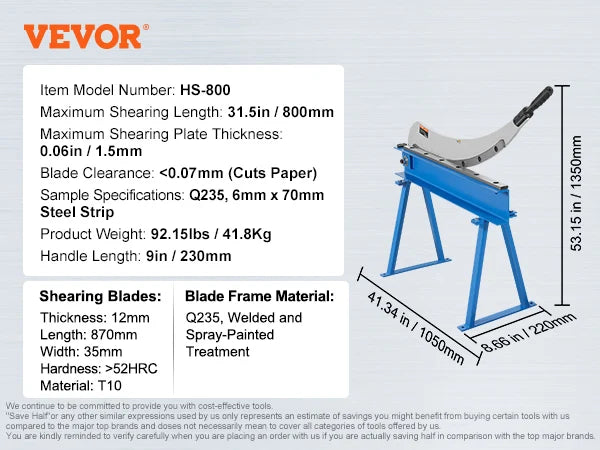

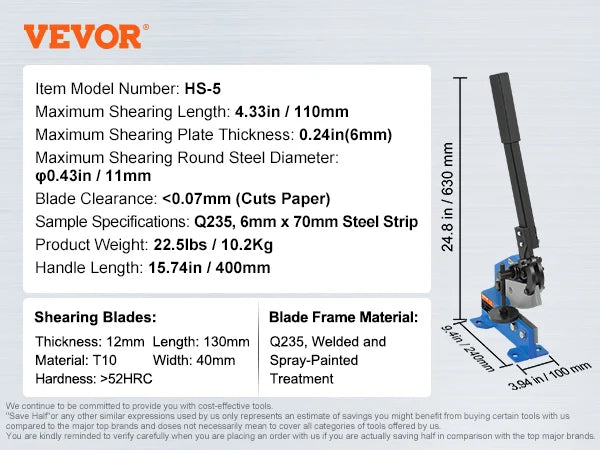

SPECIFICATIONS



Blade Clearance: Less than 0.07mm (Cuts Paper)



Brand Name: NoEnName_Null

DIY Supplies: Metalworking

Handle Length: 15.74"/400mm, 23.62"/600mm, 31.5"/800mm, 9"/230mm

Max. Shearing Length: 4.33" / 110mm, 7.48" / 190mm, 10.6" / 270mm, 31.5"/800mm

Max. Shearing Plate Thickness: 0.24" / 6mm(HS-5/HS-8/HS-12), 0.06" / 1.5mm(HS-800)

Max. Shearing Round Steel Diameter: 11mm / 13mm / 13mm (HS-5/HS-8/HS-12)

Operating Method: Tabletop Bolt Fixation, Manual Edge Folding

Primary Material: Q235,T10

Product Weight: 22.5lbs / 10.2Kg, 33.73lbs / 15.3Kg, 52lbs / 23.6Kg, 92.15lbs / 41.8Kg

Sample Specifications: Q235, 6mm x 70mm Steel Strip

Shear Plate Tensile Strength: Less than or Equal to 235Mpa

Surface Treatment & Color: Painted, Blackened Treatment, Blue



 8"" Manual Hand Plate Shear - Transform Your Work



Precision Cutting for Various Materials

This cutting machine can effortlessly slice through a wide range of materials. It can manage diverse hard metal sheets, including low carbon steel, copper bars, aluminum, aluminum alloys, galvanized, tin-plated, composite steel, and color-coated steel sheets. Such versatility greatly enhances the convenience and efficiency of your work.

• Labor-Saving Design Robust Blades Base Equipped with Mounting Holes Broad Applicability



Key Features

•

• Maximum Cutting Capacity: The machine can cut materials with length up to 7.48"" / 190mm, thickness of 0.24"" / 6mm, and round steel diameter of 0.44"" / 13mm. It easily handles steel plates, flat steel, and steel rods, reducing the need for multiple tools.

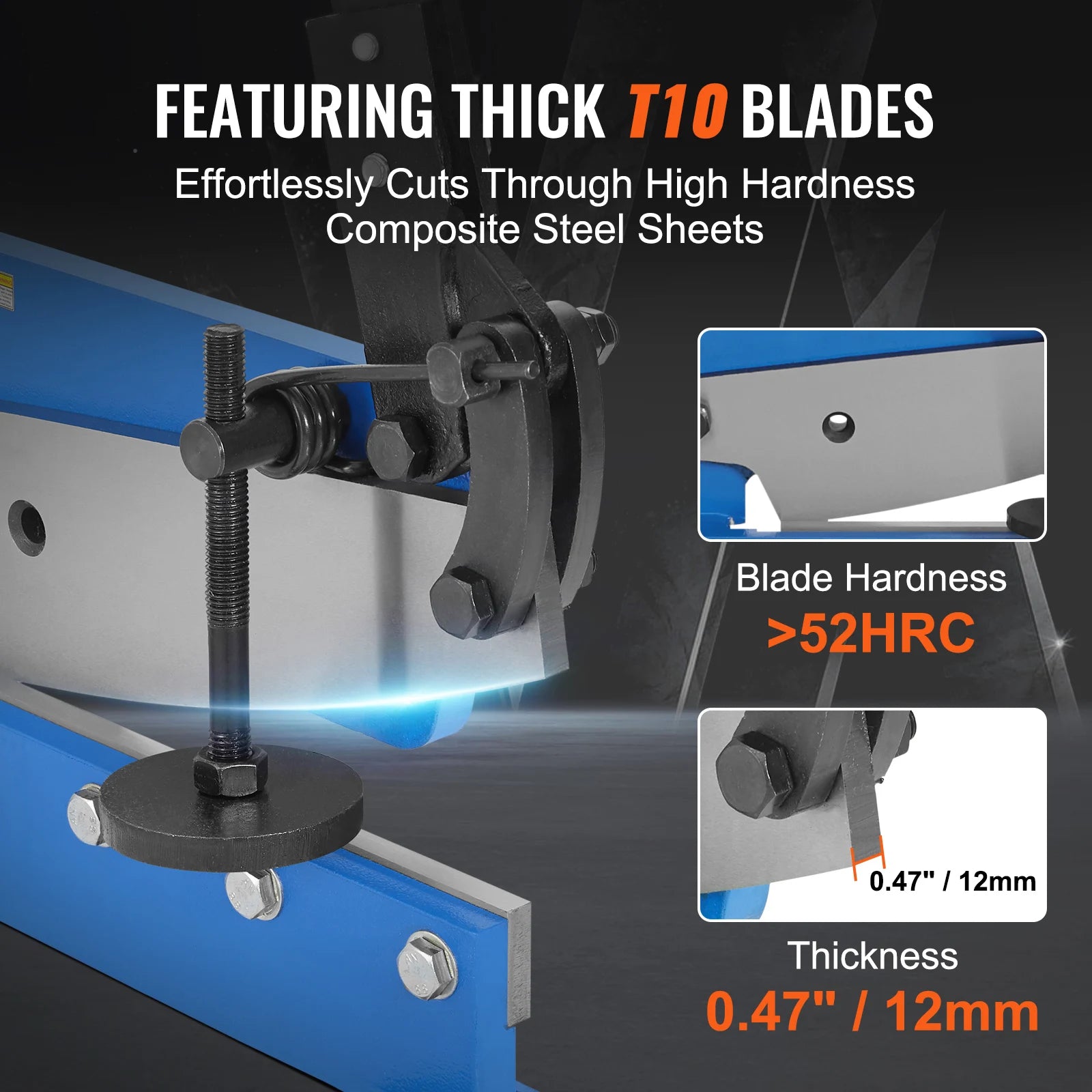

• High-Quality Blades: Utilizing T10 steel blades with hardness >52HRC and thickness of 0.47"" / 12mm, it can manage various hard metal sheets, making your work more convenient.

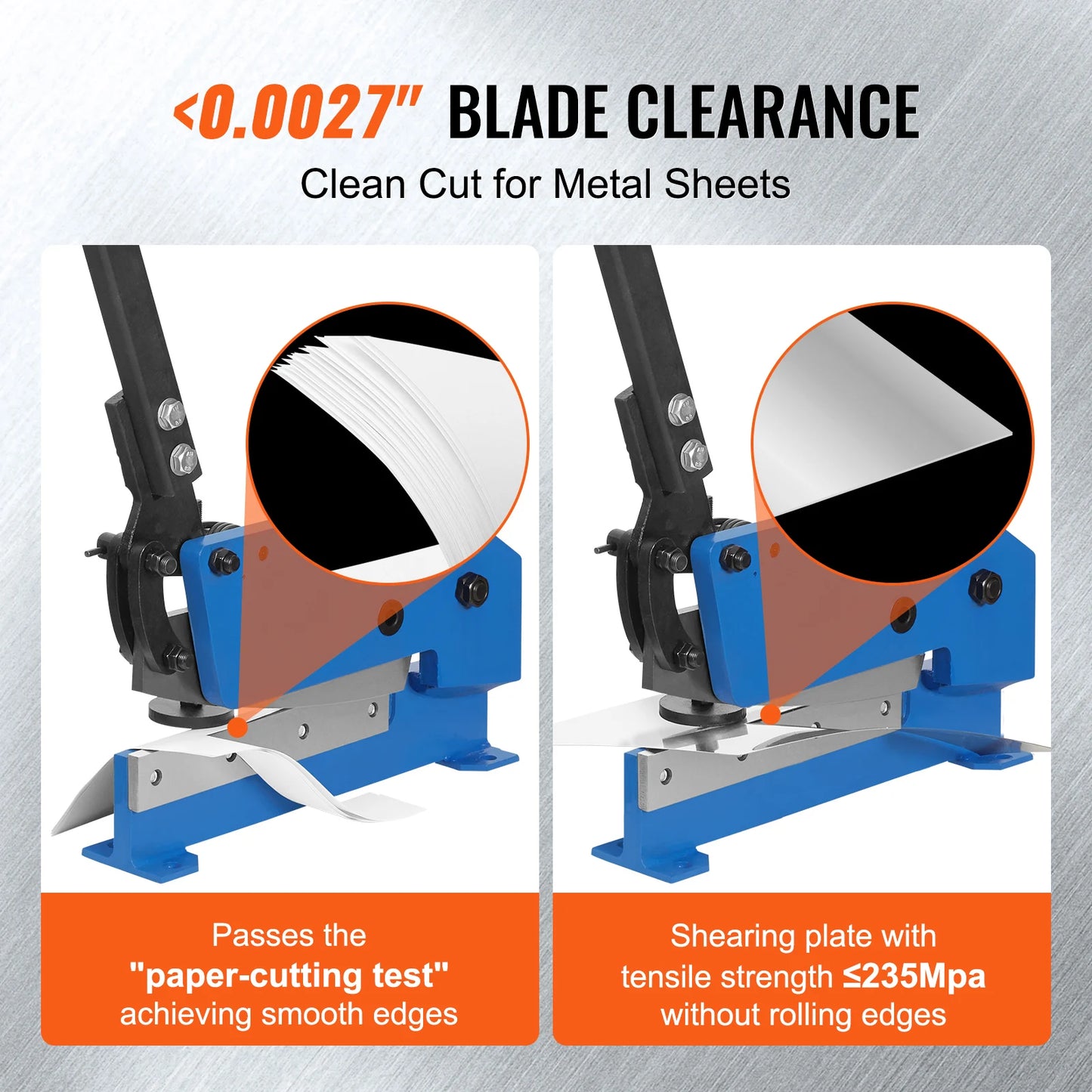

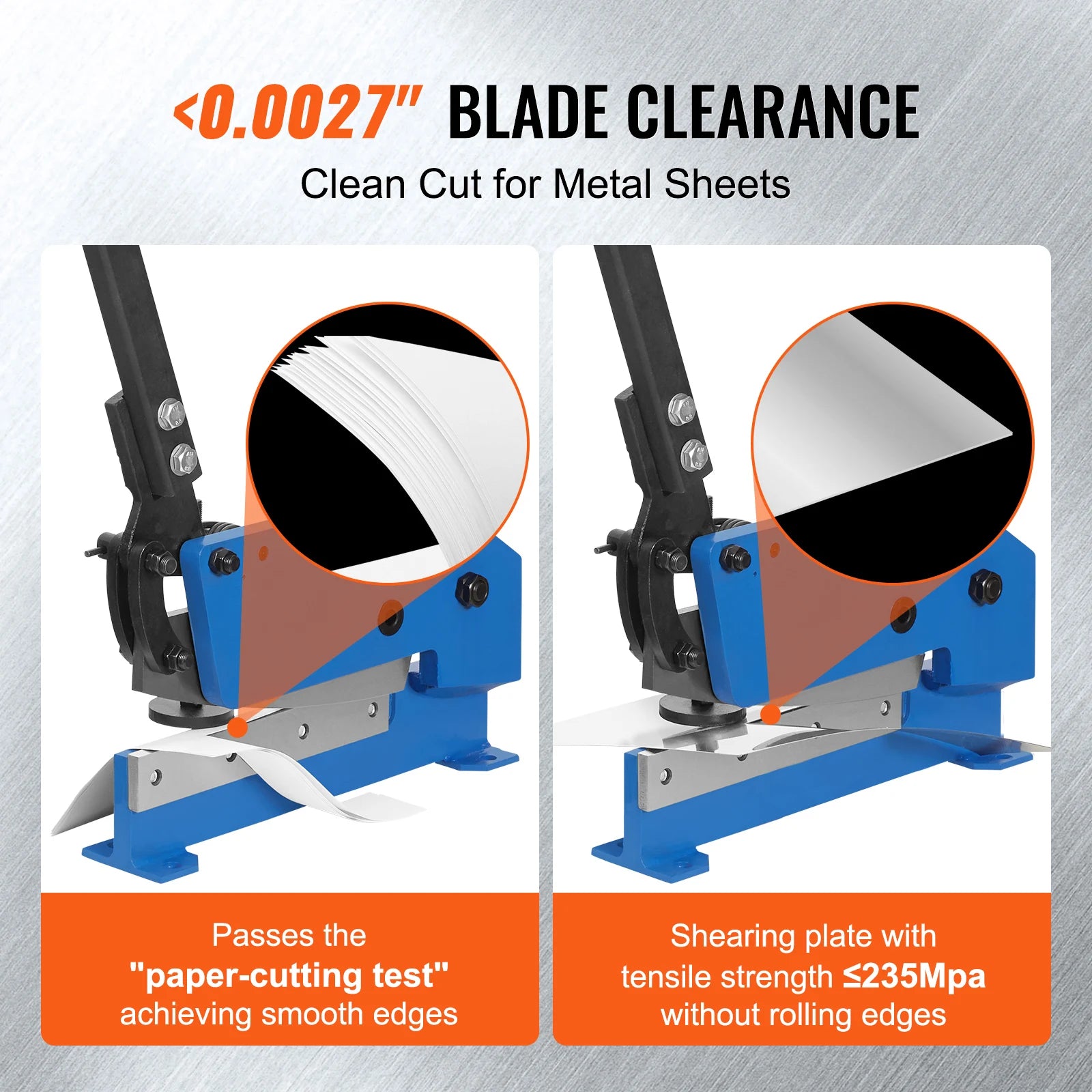

• Smooth Cutting Edges: The blade gap is <0.0027"", ensuring smooth and burr-free edges when cutting steel materials, preventing waste and damage.

• Effortless Cutting Design: The long handle allows you to exert more force with less effort, reducing cutting difficulty and fatigue, improving work efficiency.

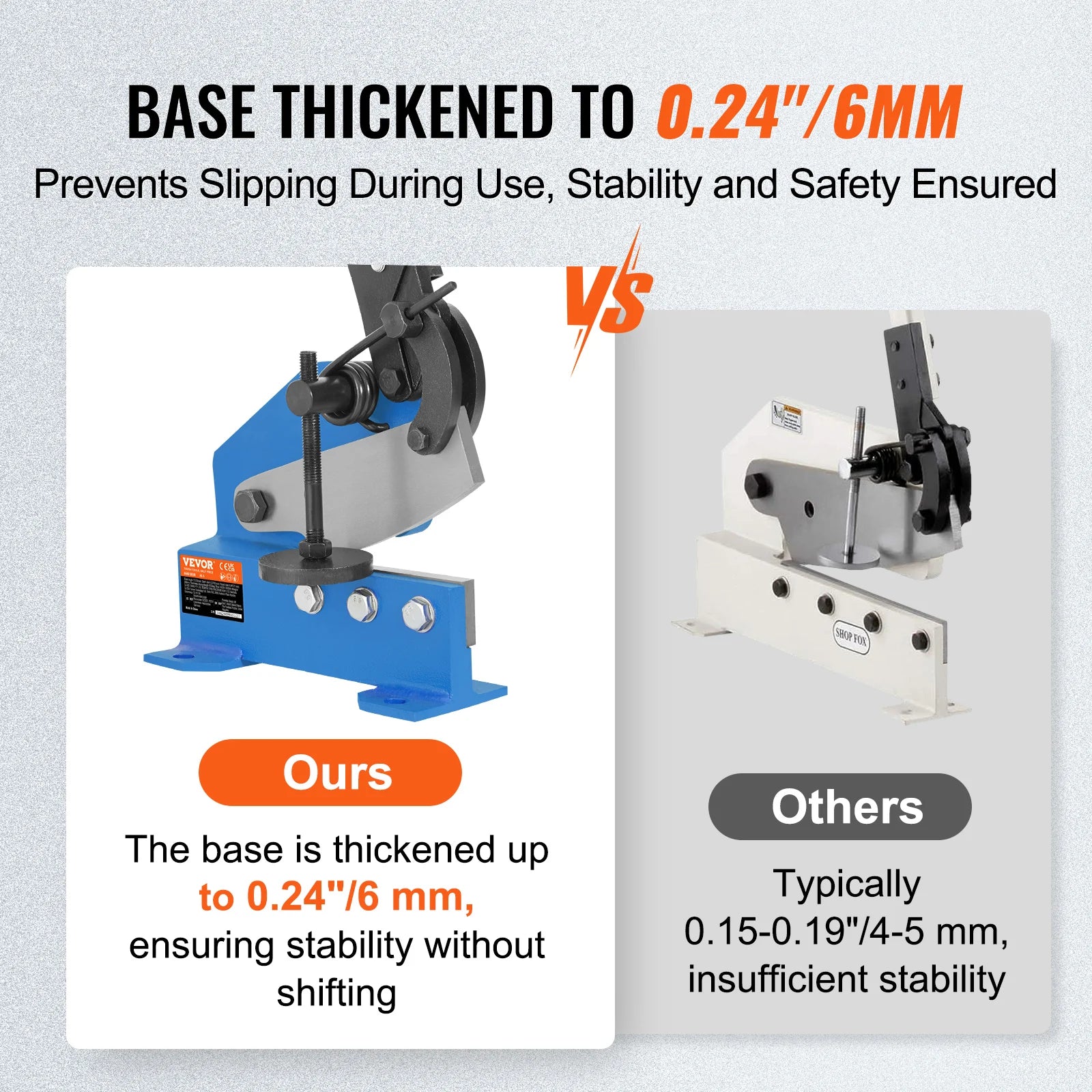

• Sturdy Construction: The thickened base of 0.24"" / 6mm provides a stable and secure platform, preventing shifting during cutting and giving you confidence in its performance.

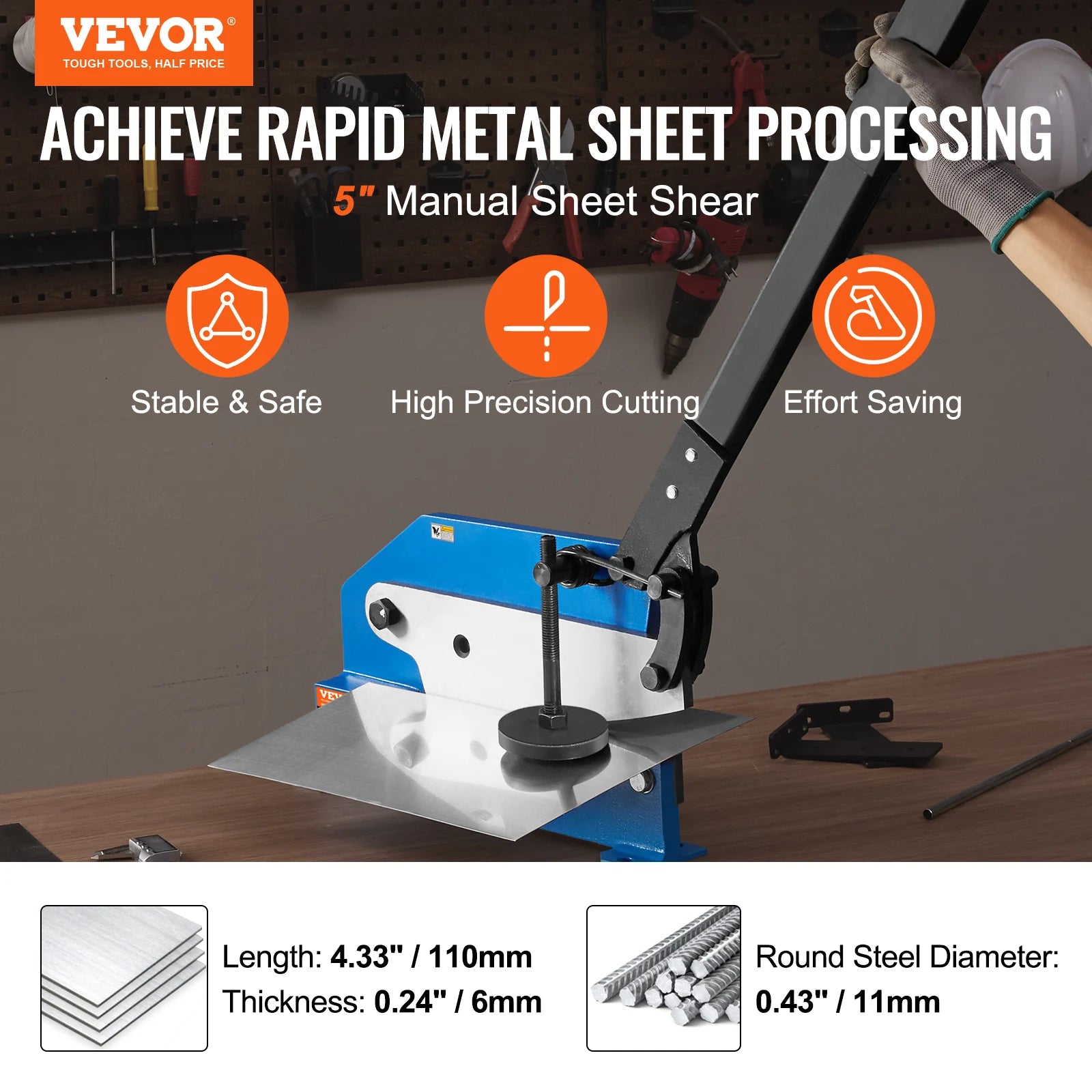

Versatile Cutting Capability

This cutting machine can handle a wide array of materials, including low carbon steel sheets, copper bars, aluminum sheets, and more. It effortlessly cuts and processes various metals, making your work more efficient.



High-Strength and Durable Blades



The blades are strong enough to cut materials of different hardness. They remain sharp even after multiple uses, ensuring effective and precise cutting every time.

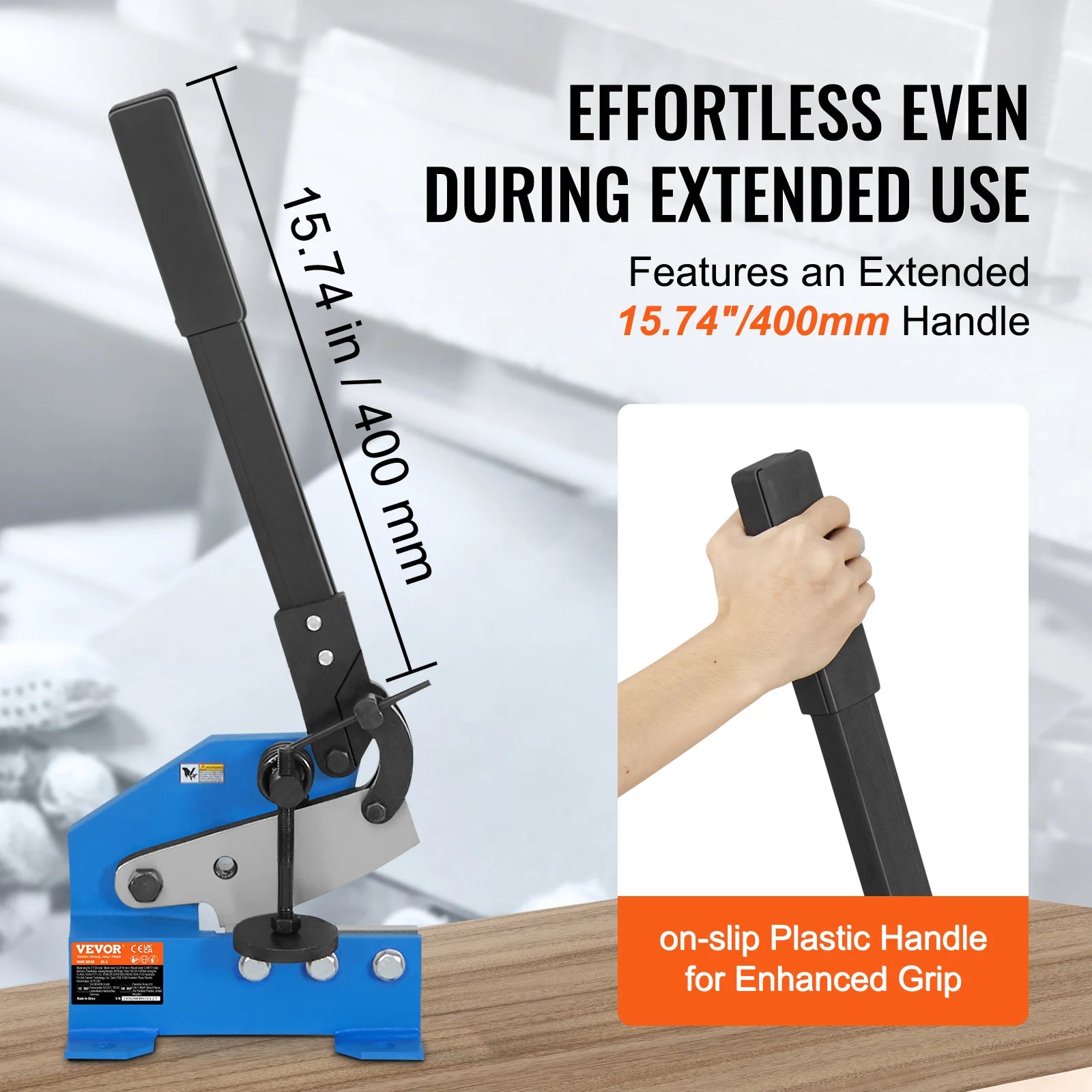

Labor-Saving Handle Design



The elongated handle enables you to exert more force with less effort. It significantly reduces the difficulty and fatigue associated with cutting, allowing for easy handling of thick or hard materials..



Fatigue-Free Operation



During the cutting process, a small force based on the material's properties is needed. Once the cut is completed, the spring resets the handle, eliminating the need for continuous force and reducing work fatigue.



Stable and Practical Base



With mounting holes at the bottom, it can be firmly installed on the workbench, enhancing stability and improving work efficiency.



Widely Applicable



Can be installed on the workbench to further enhance stability and work efficiency.

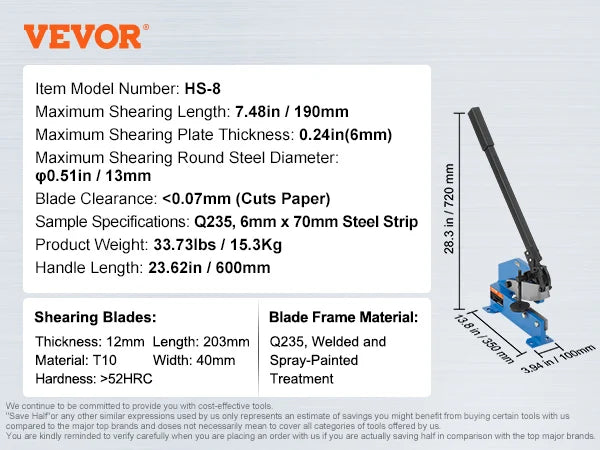

Specification



• Max. Shearing Length: 190mm / 7.48"" Max. Shearing Plate Thickness: 6mm / 0.24"" Max. Shearing Round Steel Diameter: φ13mm / 0.44"" Blade Clearance: <0.07mm (Cuts Paper) Sample Specifications: Q235, 6mm x 70mm Steel Strip Shear Plate Tensile Strength: ≤235Mpa Operating Method: Tabletop Bolt Fixation, Manual Edge Folding Surface Treatment & Color: Painted, Blackened Treatment, Blue Primary Material: Q235,T10 Product Weight: 33.73lbs / 15.3Kg Handle Length: 600mm / 23.62"" Product Dimensions: 350x100x720mm / 17.8x3.94x28.3""/li>

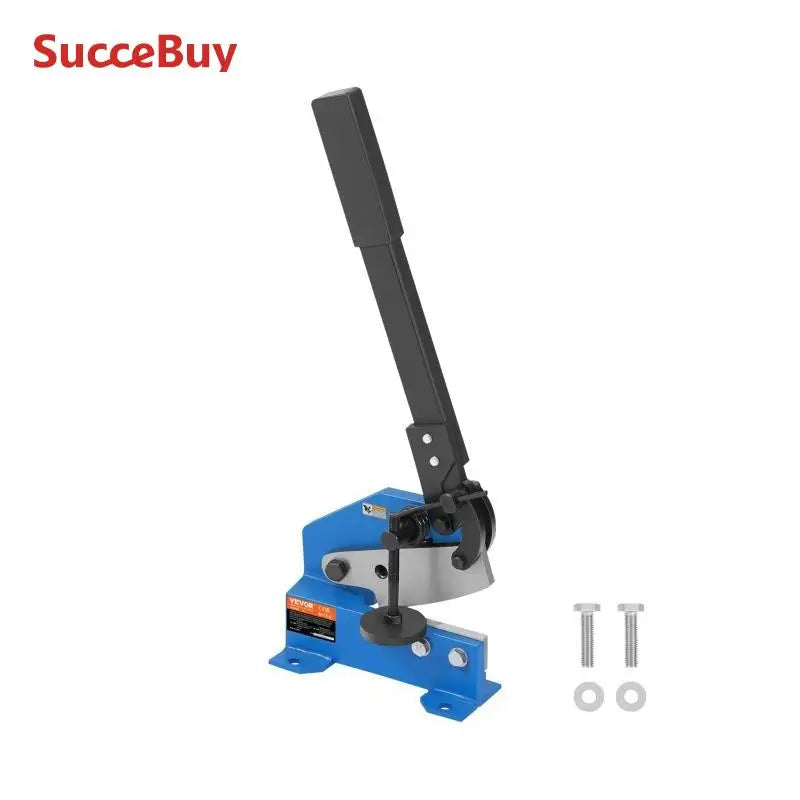

Package Content





• 1 x Instruction Manual 1 x Handle 2 x M12*40 Bolts 2 x 12mm Flat Washers
